Fixed Adjustable Bracket

#

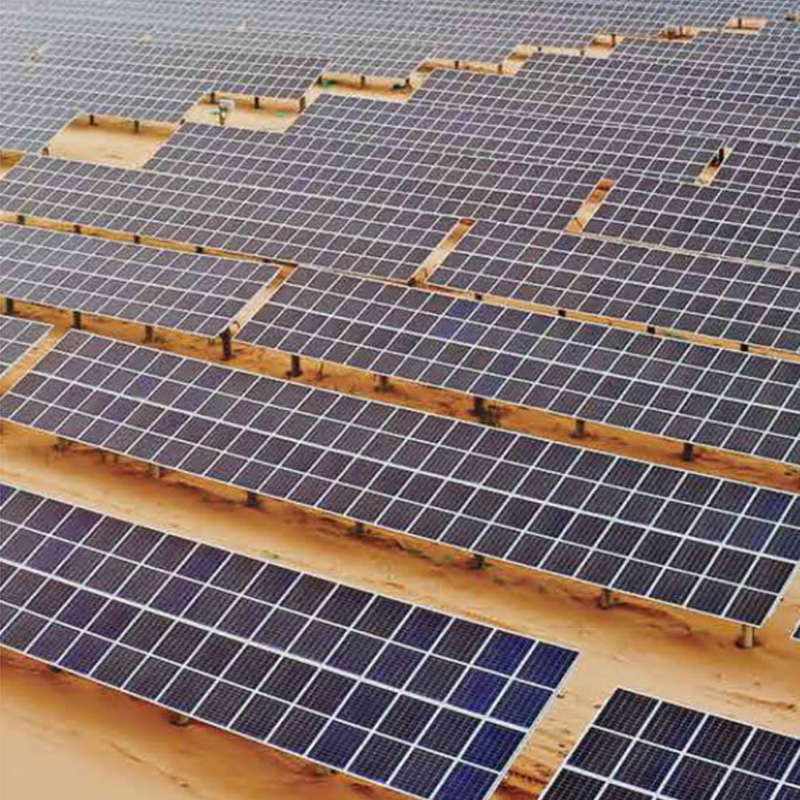

GQ-A Series Fixed-Adjustable Mounting System

Adjust The Principle:

Using the bearing capacity of the shear Jack, each supporting column is provided with a shear Jack, and the wire rod of the shear Jack is connected with the drive shaft through the universal joint, and the rotating wire rod causes the support beam to rise or fall. By manually or electrically shaking the jack wire rod, the multi-point support is synchronized in a adjustable manner, adjusting the angle mounted on the bracket PV module towards the sun.

  • 35 Ton
    1 MW Weight Of Jack Adjustable Bracket Is About 35 Tons
  • 25 Year
    HDG Galvanized Wire Rod Used In Jack Adjustable Bracket Could Stand For 25 Years Corrosion
  • 1 Year
    The Battery Used To Adjust The Tool Can Work One Full Day
  • 0.03 AUD
    The Price Of Jack Adjustable Bracket Will Be 0.03 AUD / Whigher Than That Of Fixed Bracket
  • 1.5 GW
    Jack-Adjust Mounting System Has Been Installed Around 1.5 GW
  • 5 MW
    1 Person Can Adjust At Least 5 MW A Day Easily



Product Advantages:

  • Requires Low Precision Of Foundation, Adjustable Mounting System requires The Same Precision As Fixed Ones
  • The Jack Has A Large Bearing Capacity And Self-locking Function, Which Can Effectively Prevent The Plane Sloshing Of Components Caused By Wind Shock
  • Adjustable Drive Mechanism For Jack, Jack Using Hot-dip Galvanized AntiCorrosion Technology, No Lubricating Oil, Could Be 25 Years Maintenance-free
  • Jack Adjustable Bracket, High Adjustment Efficiency, Low Cost, No need To Tighten Bolts Or Bolt 1 Person Can Adjust At Least 5 MW A Day
  • Adjustable Bracket Can Continuously Adjust The Angle In The range Of 55°, The Adjustment Angle Can Be Set Arbitrarily,No need To Set Fixed Gear
  • Transmission Rod With Universal Joint Link Rod Design, Do Not Require Multiple Support Points Concentric
  • Installation Cost Is Low, Easy To Install, Support And Components Installation Time Flat Installation, After Installation To Adjust To The Corresponding Angle
  • Use Intelligent Electric Regulating Device To Adjust, The Adjustment Is Simple And Efficient



Technical Parameters:

  • Product Structure: “1+1” Adjustable Bracket
  • Number Of Battery Modules: 18 -56 (1-2 Sets)
  • Bearing Battery Module Specifications: Crystalline Silicon. 250-550 Watts
  • Adjust Way: Electric Stepless Regulation
  • Angle Adjustment Range: 55°
  • Adjust The Maximum Wind Speed Normally: ≥22.2M/S(80 KM/H)
  • Maximum Wind Resistance: Meet The Project Requirements
  • Relative Fixed Bracket Increases The Power Generation Rate: 5%-10%
  • System Life: >25 Years
