Tracking Bracket

#

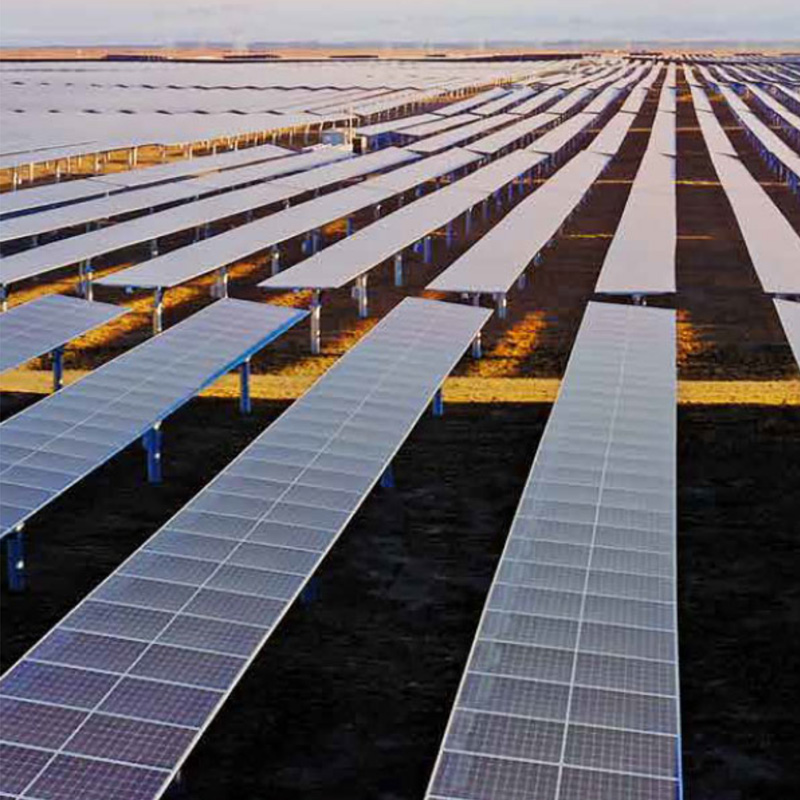

GQ-T ZY Series Tracker System

Product Features:

  • Intelligent Tracking Algorithm， Can Be Increased To About 2%
  • Independent Control Of Transmission Parts，Each Drive Interlocks，Can Actively Adjust The Spindle Torsion
  • Perfect Multiple Protection Mechanism，Ensure Reliable And Stable Operation Of Equipment
  • Innovative Outer Ball Bearing Design， Can Adapt To 15% Of Sloping Land
  • Multi-Point Support, Better Structural Stability

Control Parameters

  • Control System: Single Chip Microcomputer
  • Tracking Accuracy: ＜2°
  • Antishadow Tracking: Available
  • Night To Return: Available
  • Control Algorithm: SPA Astronomical Algorithm + Tilt Sensor Closed Loop
  • Communication interface: Zigbee/RS485
  • To Adapt To The Slope: Adaptive 15%



GQ-T1 System Parameters

  • Tracking Form: Single Row Independent Tracking System
  • Tracker Capacity: Can Accommodate Up To 120 Pieces Of Components
  • Transmission Way: Push Rod / Turn
  • Support Way: Multi-point Support, Independent Control
  • Power Supply Mode: Mains / Series Power Supply
  • Power Consumption: 0.026kWh
  • Design Wind Speed: 47m/s(ASCE7-10), Can Be Adjusted According To The Project
  • Working Temperature: -25°C~+60°C, Can Be Adjusted According To The Project
  • Tracking Angle Range: 士60
